24" Round Stainless Steel Flat Pan with AWEIS System (18" Ring) - Whole House Propane
A warm, cozy fire pit can be a delightful way of organizing an outdoor get together with family and friends, especially during those cold winter months. Our 24" round flat pan with electronic ignition kit (whole house propane) can help your customers do just that. With just the flip of a switch, your customers and their guests will be enjoying a brilliant flame and lots of memorable conversations!
Our 24" round flat pan with electronic ignition kit (whole house propane) comes fully equipped with all the following components:

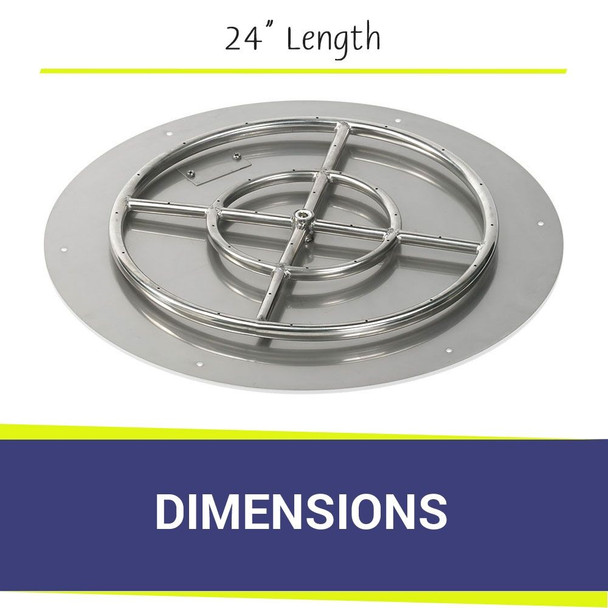

24" Round Flat Burner Pan - Our 24" round flat burner pan for fire pits is made of 100% stainless steel, which means it is very durable and can withstand extreme heat as well as harsh weather without sustaining any damage or rusting. It also comes with built-in, drilled weep holes to prevent water accumulation.
18" Ring Burner - This 18" fire pit ring burner fits on top of your fire pit burner pan. It is made of high grade 304 stainless steel which ensures its durability under extreme heat and severe weather conditions. The cross bar design provides for better flame distribution. The holes in the ring are drilled, not punched, which prevents any loud whistling noises. The ring burner works best under 2 - 4 inches of fire glass.

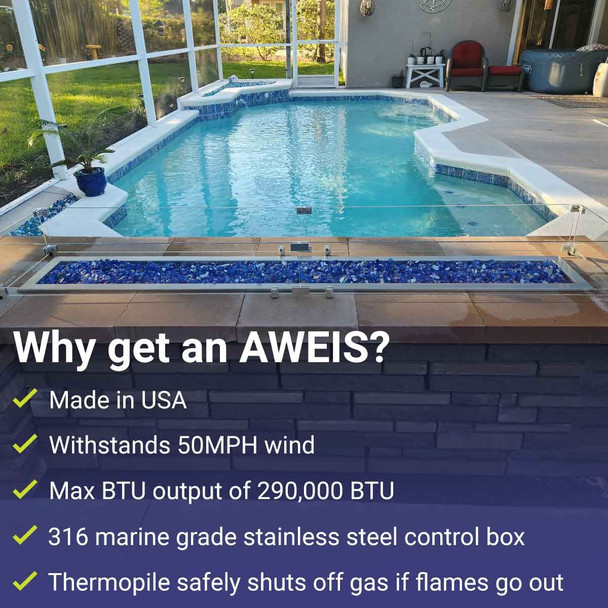

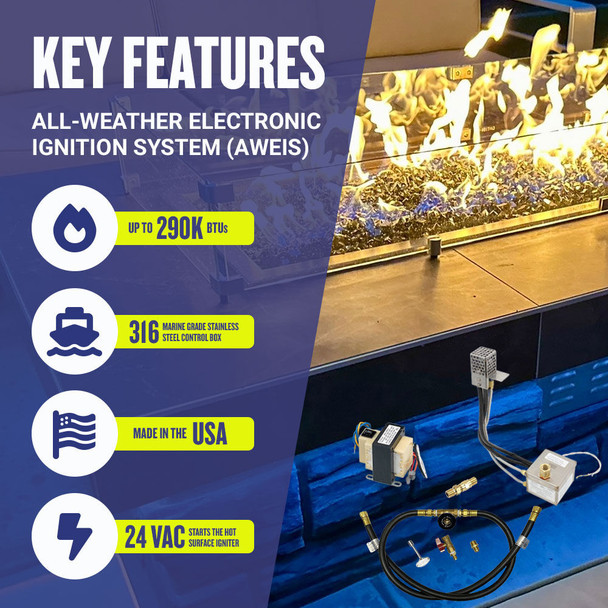

AWEIS Kit (Whole House Propane) - Our AWEIS (All Weather Electronic Ignition System) is the smallest electronic ignition system available in today's market. Its size makes it ideal for use in fire features with very little vertical space. Developed exclusively to work with fire bowls or fire pit burners, the AWEIS kit consists of a Hot Surface Ignition control that electronically opens and closes the gas valve. It also features a thermopile with automatic flame sensor for additional safety. This AWEIS kit has a maximum gas output of 290 BTU/hr, which means it works well with most fire features.
24V Transformer
Safety Shut-Off Valve
Key Valve
Two Gas Flex Lines
Propane Air Mixer
**************************************************************************************
Caution: Installing this electronic ignition kit can be dangerous. We do NOT recommend that you attempt to install this product yourself unless you are a certified NFI professional. To find a certified NFI professional in your area, click here.
**************************************************************************************
24" Round Flat Pan (18" Burner) with AWEIS (Whole House Propane) Specifications
- Product Weight: 27 Lbs
- Burner Pit Pan Dimensions: 24”
- Pan Material: 100% Stainless Steel
- Ring Burner Features: Drilled holes (not punched) in order to prevent whistling
- Burner size: 18"
- Burner Material: 304 Stainless Steel (hand crafted)
- Includes: 1/2 bottom Gas inlet for easy installation
- Burner Heat rating: 147,000 B.T.U/Hour rating maximum
- For use in: To be used in outdoor, vented, whole house propane gas fire features ONLY
- Installation: Certified NFI Professional Recommended
- Flame / Heat Sense: Thermopile
- Ignition Type: Hot Surface Ignition (Glow Plug)
- Ignition Sequence: Intermittent Pilot
- Ignition Source: Pilot
- AWEIS Max. Btu Output: 290K Btu/hr
- Inlet / Outlet Size: 1/2" FPT
- Operating Voltage: 24 volts ac
- Inlet Gas Press: Limit: 2.0 PSI
- Valve Enclosure Dim.: 4 3/8" x 4 3/8" x 4 3/8" (tall)
- Warranty: Pan & Burner - 5 year limited warranty, Kit - 1 year limited warranty
- User Manual Click Here To Download
- Cutout Size & Recommended Fire Ring: Download Now
