Slide In Side Burner Cutout Kit

cutout range 10.5"to 16.5"

Features new Telescoping cutout parts. NO TO LITTLE CUTTING!

Same assembly as our grill cutout kit

Includes:

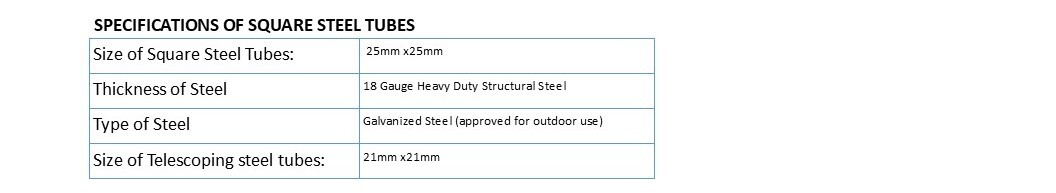

 2 ea  Steel Tubes  10"x21mm

 2 ea Steel Tubes   8.75"x25mm

 2ea  CTT tubes 29 3/4" for left and right side of grill

 2ea  3 Way Corner Couplers

 4ea 1 Way couplers ( 2 males and 2 females)

Note: You will use the two vertical tubes from the module for the right and left side burner supports. These will connect to the included 3 way corner couplers leaving you two extra one way couplers that you will use for the CTT's saving you money.

Description:

This item is the extra tubes and connectors needed to make a slide in side burner cutout into your BBQ Coach module frame including our Amazing No Cut Connectors and no cut telescoping tubes for below and behind the side burner.

 It will work for all built in side burners with a 10.5-16.5"  wide cutout width that are supported on the counter top such as Bull, Cal Flame, Fire Magic, Summerset, Napolean, etc...

 Some high end slide in side burners will require you to make a platform frame in addition to this cutout opening.

 For platform side burners you will buy extra tubes and one way connectors sold as a side burner platform kit in addition to this universal grill kit.

 side burners with a cutout width less than 10.5" will require you to trim the  tubes as needed.

  What's Not Included:

This kit does not include the actual bar center, cement board, a 4ft module, screws, etc...
