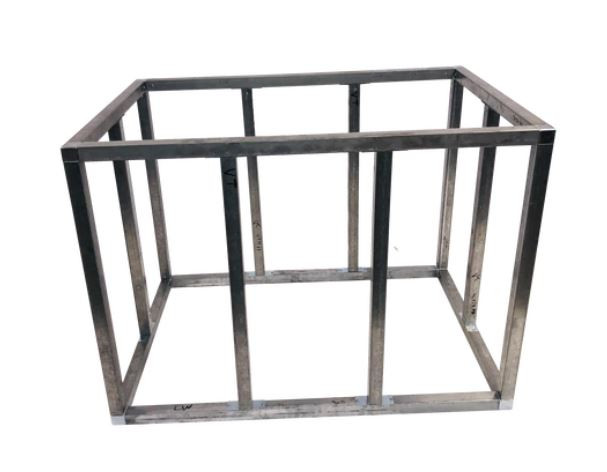

End Zone BBQ 4ft module frame kit for Outdoor Kitchens

Build the ultimate outdoor kitchen foundation with the End Zone BBQ 4 ft Module Frame Kit. Designed for strength, precision, and complete customization, this rigid steel framing system delivers a commercial-grade skeleton for your custom barbecue island without the guesswork.

Built for Strength & Customization

Unlike adjustable sliding kits, this 4-foot unit features a rigid, non-telescoping design to maximize structural integrity across your entire countertop run. Need a specific footprint for a tight patio layout? Easily customize the overall length on-site by trimming the four horizontal length wall tubes to your exact specifications using a standard chop saw or hacksaw.

Specifications

• Finished Dimensions: 48" L x 25" D x 35" H

• Frame Material: Heavy-duty 18 gauge steel tubing and structural connector fittings

• System Type: Fixed (Non-Telescoping)

• G60 Galvanization (outdoor approved)

What’s Included in the Kit

• 10 Vertical Steel Tubes (yellow paint)

• 4 Length Wall Tubes (red paint) (Pre-cut to 46 1/8", yielding a true 48" overall length when paired with corner couplers)

• 4 End Frame Tubes (blue paint) (Yielding a standard 31 1/2" module depth)

• 8 Heavy-Duty 3-Way Steel Corner Couplers

• 12 1-Way Steel Couplers

• 4 Leveling Feet (FREE $80 Value)

Please Note: Assembly is required. Kit includes the metal structural framing tubes and couplers only. Cement board backer, framing screws, ventilation panels, and built-in outdoor appliances are sold separately.
